Accessories included - - CD with software and documentation
- Detachable IEC power cord 1.2 m
- Detachable IEC power cord 1.8 m
- Telephone cable
- USB cable
- Warranty Card
Active power - 210 W
Alarm -
Alarm when on batterydistinctive low battery alarmoverload continuous tone alarm
Apparent power - 350 VA
ARTIKEL1 - BACK-UPS 350EI 350VA
ARTIKEL2 - 210W IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 7 Ah
Battery - Battery capacity - 116 VAh
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 6 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Typical backup time at full load - 8.6 min
Battery - Typical backup time at half load - 22.1 min
Battery capacity - 7 Ah
Battery recharge time, h - 6
BatteryType - Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof
Brand - APC
BrandPartCode - BK350EI
Breite - 0.24
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Charging time - 6 h
Chassis type - Tower
Color - Beige
Connections - RJ-45
Connections - Serial (RS-232)
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45

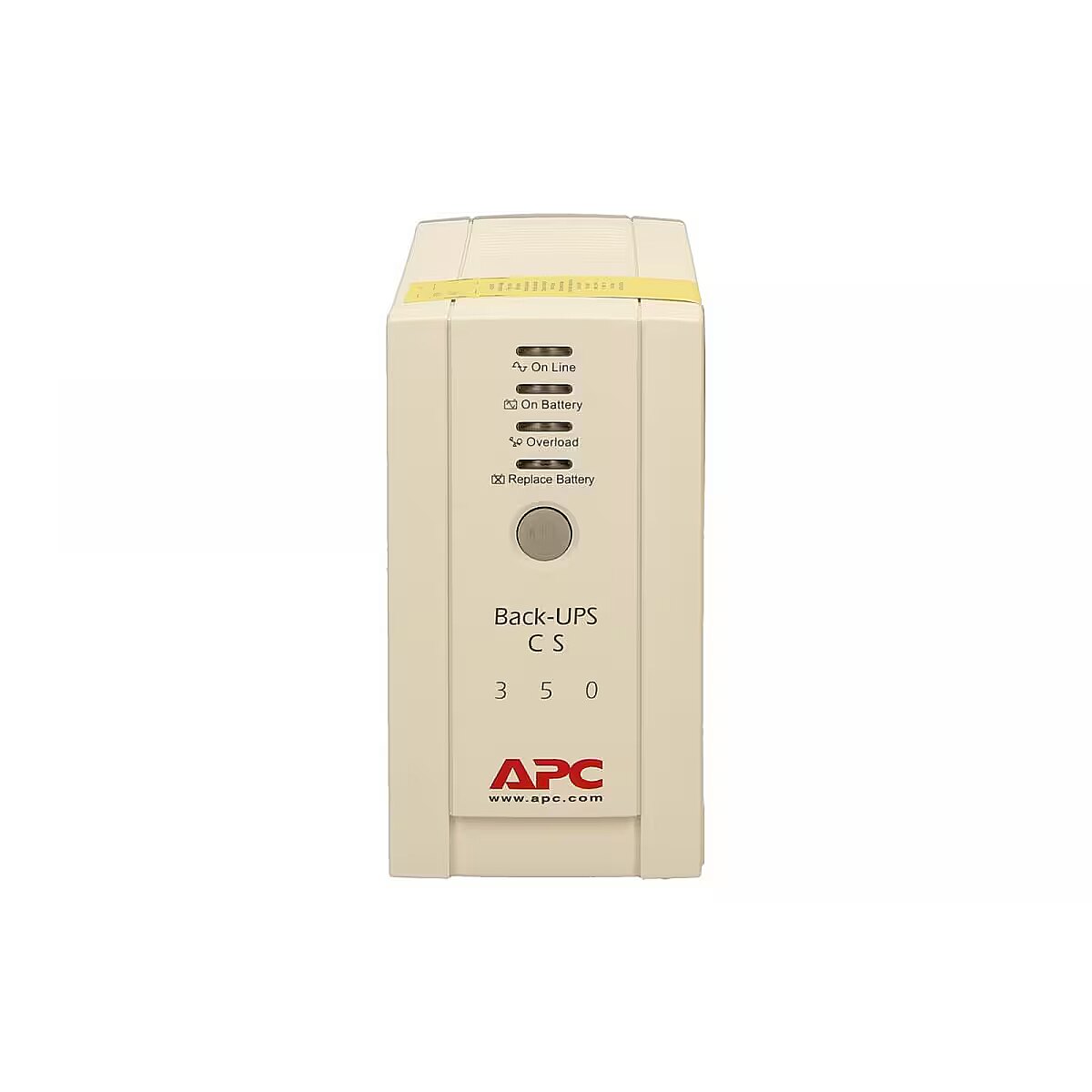

ControlPanel - LED status display with On LineOn BatteryReplace Battery and Overload indicators
Data line protection - RJ45 Analog phone line for phone/fax/modem/DSL
Depth - 284 mm
Depth, mm - 284
Description - APC BACK-UPS CS 350VA USB/SERIAL 230V
Description - BACK-UPS CS 350VA USB/SERIAL 230V BK350EI
Design - Cable length - 1.83 m
Design - Certification - C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Beige
dimension depth - 185 mm
dimension height - 235 mm
Dimensions - 91 x 284 x 165 mm
dimension weight - 6651 g
dimension width - 415 mm
ean - 731304016342
EAN - 0731304016342
EANCode - 0731304016342
EAN_code - 0731304016342
Environment requirements - - Operating environment 0 - 40 °C
- Operating relative humidity 0 - 95%
- Height asl during operation 0-3000 meters
- Storage temperature -15 - 45 °C
- Storage relative humidity 0 - 95%
- Storege height asl 0-15000 meters
- Audible noise at 1 meter from surface of unit 40.00 dBA
- Thermal Dissipation 19.00 BTU/hr
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Efficiency - 98.6%
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 6 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 266 V
Features - Input operation voltage (min) - 180 V
Features - Maximum current - 7 A
Features - Output frequency regulation - 47 - 63 Hz
Features - Output power - 210 W
Features - Output power capacity - 0.35 kVA
Features - Power protection features - Overload
Features - Surge energy rating - 310 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Surge
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 47 - 63
GrossWeight - 6.650 kg
Gross Weight Kg - 7,4
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304016342
GTIN - 0731304016342
guarantee - 24
guarantee_type - external
Height - 165 mm
Height - 236.000000
Height, mm - 165
HERSTELLER - APC
Hoehe - 0.19
HSTNUMMER - BK350EI
Input connection - IEC-320-C14
InputConnections - IEC-320-C14 inlet
Input current, A - 7
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230 V
Input voltage, V - 180 - 266
InterfacePorts - -
Laenge - 0.42
Length - 189.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 48 pc(s)
LongDesc - The re-invention of the most relied upon desktop UPS in history: the Back-UPS!The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.Key features:- Audible alarms - Automatic restart of loads after UPS shutdown - Automatic self-test - Battery replacement without tools - Battery-protected and surge-only outlets - Dataline Surge Protection - Hot-swappable batteries - LED status indicators - Power conditioning - Resettable circuit breakers - Safety-agency approved - Transformer-block spaced outlets - User-replaceable batteries
LongDesc - APC Back-UPS CS, 210 Watts / 350 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, USB
LongProductName - Back-UPS CS, 350VA/210W, Input 230V/Output 230V, Interface Port DB-9 RS-232, USB
LongSummaryDescription - APC Back-UPS. UPS topology: Standby (Offline), Output power capacity: 0.35 kVA, Output power: 210 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 116 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Width: 91 mm, Depth: 284 mm, Height: 165 mm
Manufacturer - APC
Manufacturer Code - BK350EI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BK350EI
Manufacturer_code - BK350EI
MANUFDATASHEET - http://www.apc.com/resource/include/techspec_index.cfm?base_sku=BK350EI&tab=models
Maximum power, W - 210
MPN - BK350EI
name - APC Back-UPS 350 230V BK350EI
Name - APC Back-UPS CS 350VA black350EI ++
Name - APC Back-UPS Tower BK350EI 350VA 210W 230V
No. of batteries - 1
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Front panel: The LEDs indicate operation On Line: battery operation; Replace Battery; Overload indicators
- Audible Alarm: Alarm when on battery; distinctive low battery; overload continuous tone alarm overload
- Surge energy (in Joules): 300 Joules
- Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; Zero clamping response time; meets UL 1449
- Data Line Protection RJ-45 Modem / Fax (two wire single line)
- Approvals: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Other features - Filtering - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

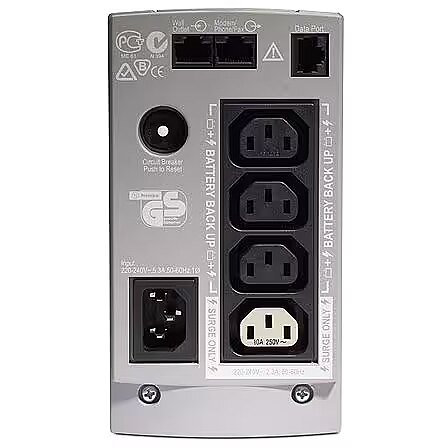

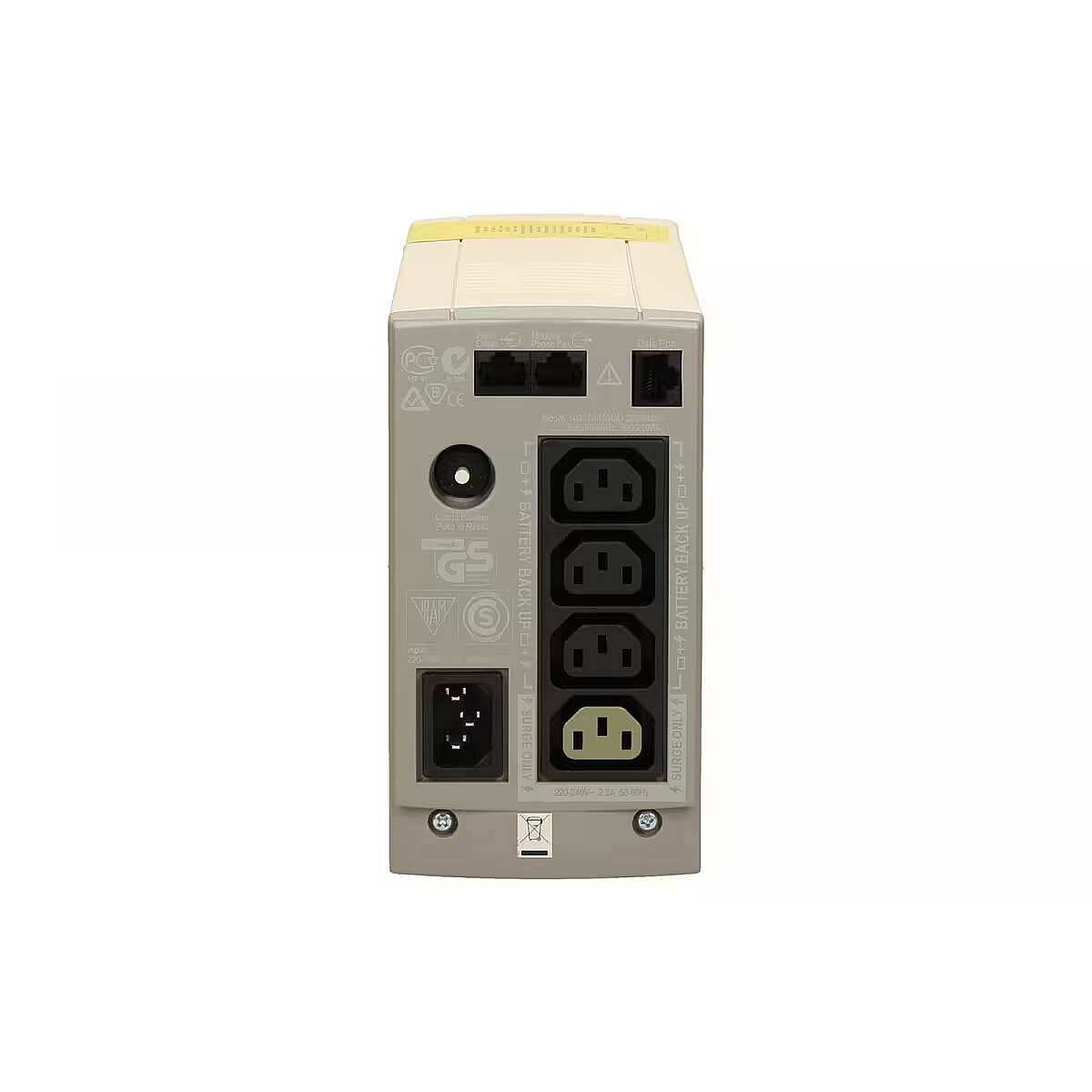

OutputConnections - (1) IEC 320 C13 (Surge Protection)(3) IEC 320 C13 (Battery Backup)
OutputFrequency - -
Output interface - 1 x IEC 320 C13 (Surge Protection), 3 x IEC 320 C13 (Battery Backup), 2 x IEC Jumpers (Battery Backup)
Output power, W - 210
Output power capacity (VA) - 350
Output power ports - 4 x IEC-C13
OutputVoltage - 230 V
PackageContents - CD with softwareDocumentation CDQty 2 - Detachable IEC C13 to IEC C14 power cordsTelephone CableUSB cable
Packaging data - Bundled software - PowerChute Personal Edition
Packaging data - Cables included - Phone (RJ-11), USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
PowerVAW - 350 VA
PowerW - 210 W
Print Text - Incl. PowerChute Software für Windows | 98/Me/2000/XP/ Linux und Mac OS 9 | only USB interface
ProdDesc - APC Back-UPS CS/350VA Offline
producer - APC
ProductName - Back-UPS
ProductPicture - http://www.tdbaltic.ee/images/ds/BK350EI.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds/BK350EI-2.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds/BK350EI-3.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds/BK350EI-4.jpg
RechargeTime - 6 h
RJ45 - -
Runtime - 9 min (full load) / 23 min (half load)
Runtime - 23.4/8.6.
Short description - APC Back-UPS CS 350 VA BK350EI
ShortSummaryDescription - APC Back-UPS, Standby (Offline), 0.35 kVA, 210 W, 180 V, 266 V, 50/60 Hz
SmartSlot - -
Software -
Special functions -
Stck_Kart - 8
Stck_Pal - 84
Storage temperature range (T-T), °C - 0 - 40
Storno - Y
Surge energy rating, J - 310
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR, Green Premium
Technical_details - The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management Featuress and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These Featuress along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems. Key Featuress:
- Audible alarms - Automatic restart of loads after UPS shutdown - Automatic self-test - Battery replacement without tools - Battery-protected and surge-only outlets - Dataline Surge Protection - Hot-swappable batteries - LED status indicators - Power conditioning - Resettable circuit breakers - Safety-agency approved - Transformer-block spaced outlets - User-replaceable batteries Device Type Standalone UPS Power Rating 350 VA / 210 Watt Input Voltage 196-264 V Buffering Time Full Load: 4.7 minute(s) Half Load: 18.1 minute(s) Ports / Interfaces serial: 1x USB: 1x Outputs Type 1 3x IEC 320 (C13) connected to Battery Yes Type 2 1x IEC 320 (C13) connected to Battery No Protection Line Protection: 1x RJ-11/RJ-45 Alert Messages optical: LED-Status-Anzeige von operating, Batterieoperating, changing the battery and overload Operating Temperature Storage Temperature -5 - 45 °C Charging time to 95% (at half load) 8 hour(s) Output V 230 VAC Operating via Battery: 230 VAC Product dimensions 92x165x285 mm Weight 6.3 kg RoHS Compliant Yes
Title - APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 0.35 kVA 210 W 4 AC outlet(s)
Topology - Offline
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/family/index.cfm?id=17
USB - Yes
vendpn - BK350EI
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years
WaveformType - -
Weight - 6,20
Weight - 6.4
Weight - 6.32 kg
Weight - 6.320 Kg
Weight - 6.580000
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Height - 165 mm
Weight & dimensions - Package depth - 368 mm
Weight & dimensions - Package height - 178 mm
Weight & dimensions - Package weight - 7.05 kg
Weight & dimensions - Package width - 241 mm
Weight & dimensions - Weight - 6.32 kg
Weight & dimensions - Width - 91 mm
Weight, kg - 6.32
Width - 91 mm
Width - 416.000000
Width, mm - 91
