APC Easy-UPS SRV1KI 1000VA, 800W, IEC

Accessories included - Software CD, USB cable, User's guide
Active power - 800 W
Apparent power - 1000 VA
ARTIKEL1 - EASY UPS SRV 1000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 4 min
Battery - Battery capacity - 9 Ah
Battery - Battery capacity - 24 VAh
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 10 min
Battery capacity - 9 Ah
Battery recharge time, h - 4
Battery type - Lead-Acid
Brand - APC
BrandPartCode - SRV1KI
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, IEC 62040-1-1, IEC 62040-1-2
Charging time - 4 h
Chassis type - Tower
Color - Black
Connections - USB
Depth, mm - 288
Description - APC EASY UPS SRV 1000VA 230V
Description - RV1KI SmartUPS RV 1000 VA
- Automatic internal bypass The mains supply for the connected load in the event of an overload or a fault in the UPS.
- Automatic activation of the UPS after the power returns. Automatically starts the connected equipment when the power supply from the municipal network resumes.
- ECO mode. Mode of operation in which in the case of good quality external power supply some components of the power supply are bypassed, which ensures high efficiency without compromising the effectiveness of protection.
- Correction of load power factor Reduces installation costs due to the possibility of using smaller generators and cabling.
- Intelligent battery management Maximize battery performance, life and reliability with intelligent precision charging.
- LCD display Alphanumeric monitor displaying system parameters and alarm notifications.
- Serial port You can use any home automation network to monitor and control S20 via the RS-232 port. Information on how to communicate with S20 can be found in APC application note No. 102. The Crestron and AMX installers should read the S20 integration information with their networks. This information is available on the respective companies' websites.
- USB connector Allows you to manage the UPS via the USB port.
Design - Display type - LCD
Design - Form factor - Mini Tower
Design - Product colour - Black
dimension depth - 235 mm
dimension height - 370 mm
Dimensions - 223 x 145 x 288 mm
dimension weight - 11040 g
dimension width - 330 mm
ean - 731304339205
EANCode - 0731304339205
Environment requirements - - Operating temperature 0 - 40°C
- Relative humidity during operation 0 - 95% non-condensing%
- Height during operation 0-3000 meters
- Temperature (storage) -20 - 50°C
- Relative humidity (storage) 0 - 95% non-condensing%
- Height (storage) 0-14763.6 meters
- Noise heard at a distance of 1 m from the surface of the 50.0dBA device
Features - Crest factor - 3:1
Features - Efficiency - 88%
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 110 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 800 W
Features - Output power capacity - 1 kVA
Features - Socket circuit breaker - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Surge
Form factor - Tower
Frequency range, Hz - 50/60Hz +/- 3 Hz
Gewicht - 11.06
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304339205
GTIN - 0731304339205
guarantee - 24
guarantee_type - external
Height - 329.000000
Height, mm - 223
HERSTELLER - APC
HSTNUMMER - SRV1KI
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input connection - IEC-320 C14
Input frequency, Hz - 40 - 70
Input power ports - IEC-C14
Length - 364.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongProductName - SRV 1000VA, 230 Vac, 40 – 70 Hz, 1000 VA / 800 W, 220 Vac, 240 Vac, 88% max, 24 V
LongSummaryDescription - APC SRV1KI. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery capacity: 9 Ah, Battery capacity: 24 VAh, Battery voltage: 12 V. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Width: 145 mm, Depth: 288 mm, Height: 223 mm
Manufacturer - APC
ManufacturerPartNumber - SRV1KI
Maximum power, W - 800
name - RV1KI SmartUPS RV 1000 VA/800W/3xC13/RS232/mNM
No. of batteries - 2
Noise level, dB - 50
Nominal input voltage, V - 230
Nominal output voltage, V - 220, 230, 240
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features -

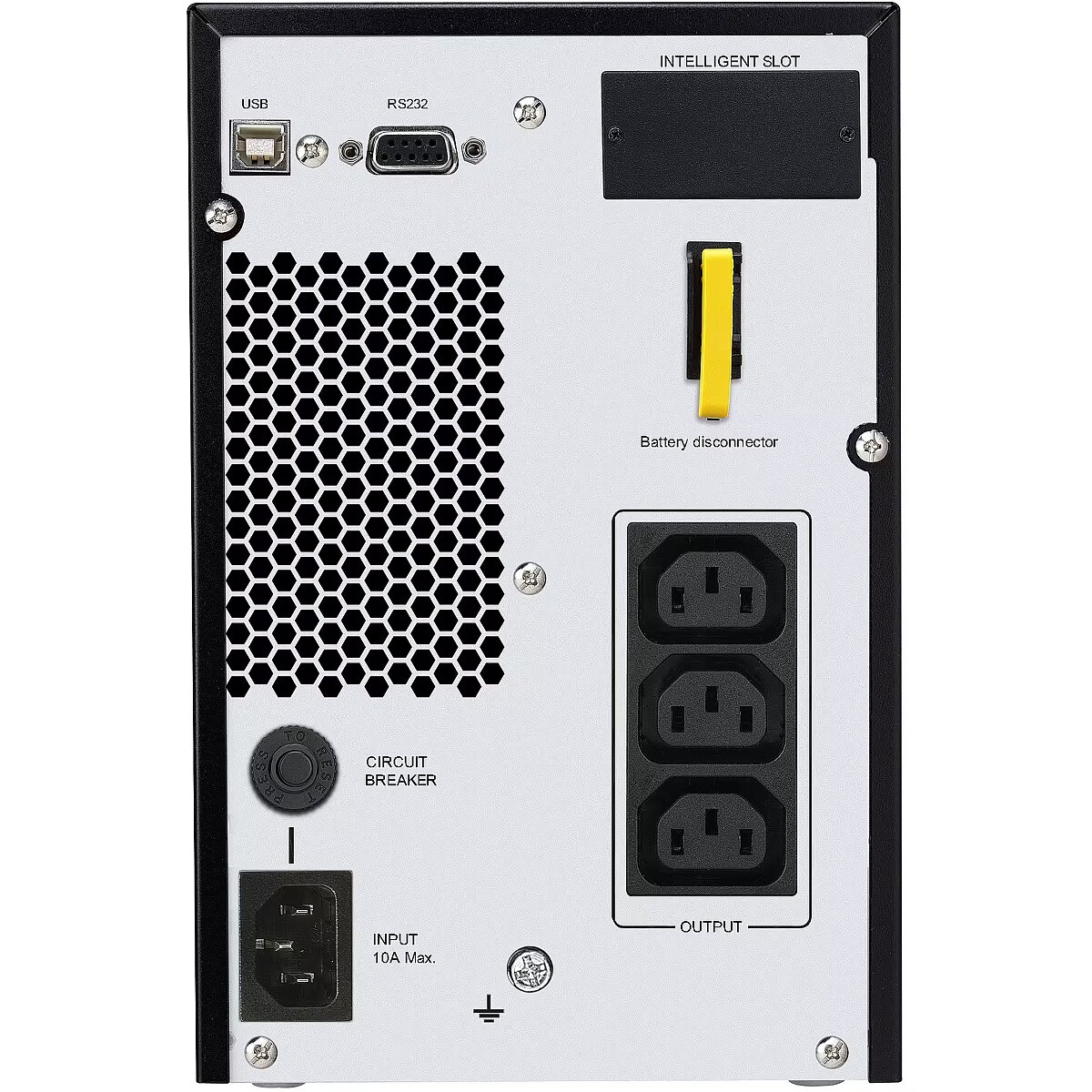

Output interface - (3) IEC 320 C13
Output power, W - 800
Output power capacity (VA) - 1000
Output power ports - 3 x IEC-C13
Packaging data - Cables included - Input power cable, Output power cable, RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Package volume - 10600 cm³
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
producer - APC
ProductName - SRV1KI
ShortSummaryDescription - APC SRV1KI, Double-conversion (Online), 1 kVA, 800 W, Sine, 110 V, 285 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Surge energy rating, J - 600
Title - APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/id/en/products/APC-Easy-UPS-SRV-1000VA-230V/P-SRV1KI?isCurrentSite=true
vendpn - SRV1KI
Voltage - 12 V
WarrantyInfo - 2 years
Weight - 9.3 kg
Weight - 10.950000
Weight & dimensions - Depth - 288 mm
Weight & dimensions - Height - 223 mm
Weight & dimensions - Package depth - 365 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package weight - 10.6 kg
Weight & dimensions - Package width - 235 mm
Weight & dimensions - Weight - 9.3 kg
Weight & dimensions - Width - 145 mm
Weight, kg - 9.3
Width - 237.000000
Width, mm - 145
