APC Smart-UPS SMC1000I-2UC 1000VA, 600W, IEC, 2U

Accessories included - Software CD CD with documentation Installation Guide USB cable
Active power - 600 W
Apparent power - 1000 VA
ARTIKEL1 - APC SMART-UPS C 1000VA LCD
ARTIKEL2 - RM 2U 230V WITH SMARTCONNECT IN
Backup time (100% load) - 9.2 min
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Number of batteries supported - 1
Battery - Replacement battery cartridge - APCRBC124
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMC1000I-2UC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certificates - Certification - CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH
Certificates - Compliance certificates - RoHS
Certification - C-tick, CE, GOST, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Color - Gray
Connections - USB
Depth, mm - 406
Description - APC SMART-UPS C 1000VA LCD RM 2U 230V WITH SMARTCONNECT
Description - APC Smart-UPS C 1000VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design - Cable length - 2.44 m
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 540 mm
dimension height - 575 mm
Dimensions - 8.6 x 43.2 x 40.6 cm
dimension weight - 20700 g
dimension width - 230 mm
ean - 731304332930
EAN - 0731304332930
EANCode - 0731304332930
Eans - 0731304332930
EAN_code - 0731304332930
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the device 42.0dBA Heat dissipation online 46.0BTU / hour.
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 170 V
Features - Noise level - 41 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 600 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Surge energy rating - 680 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack
Frequency range, Hz - 57 - 63 Hz for 60 Hz nominal
Gewicht - 20.08
Gross Weight Kg - 22,33
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304332930
GTIN - 0731304332930
guarantee - 24
guarantee_type - external
Height - 540.000000
Height, mm - 89
HERSTELLER - APC
HSTNUMMER - SMC1000I-2UC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
Input connection - IEC-320 C14
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
Input voltage, V - 180 - 287 (170 - 300)
Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 16 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 945.86
LongDesc - This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Designed for small offices or small business owners to maintain a core network and business communication.
LongProductName - Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD
LongSummaryDescription - APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH
Manufacturer - APC
Manufacturer Code - SMC1000I-2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMC1000I-2UC
Manufacturer_code - SMC1000I-2UC
Maximum power, W - 600
MPN - SMC1000I-2UC
Name - APC Smart-UPS 1000VA SMC1000I-2UC
Name - APC Smart-UPS Rack SMC1000I-2UC 1000VA 600W 2HE mit SmartConnect
Name - APC Smart SMC1000I-2UC
name - Uninterruptible Power Supply SMC1000I-2UC C 1kVA/600W 2U SmartConne
Noise level, dB - 42
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -

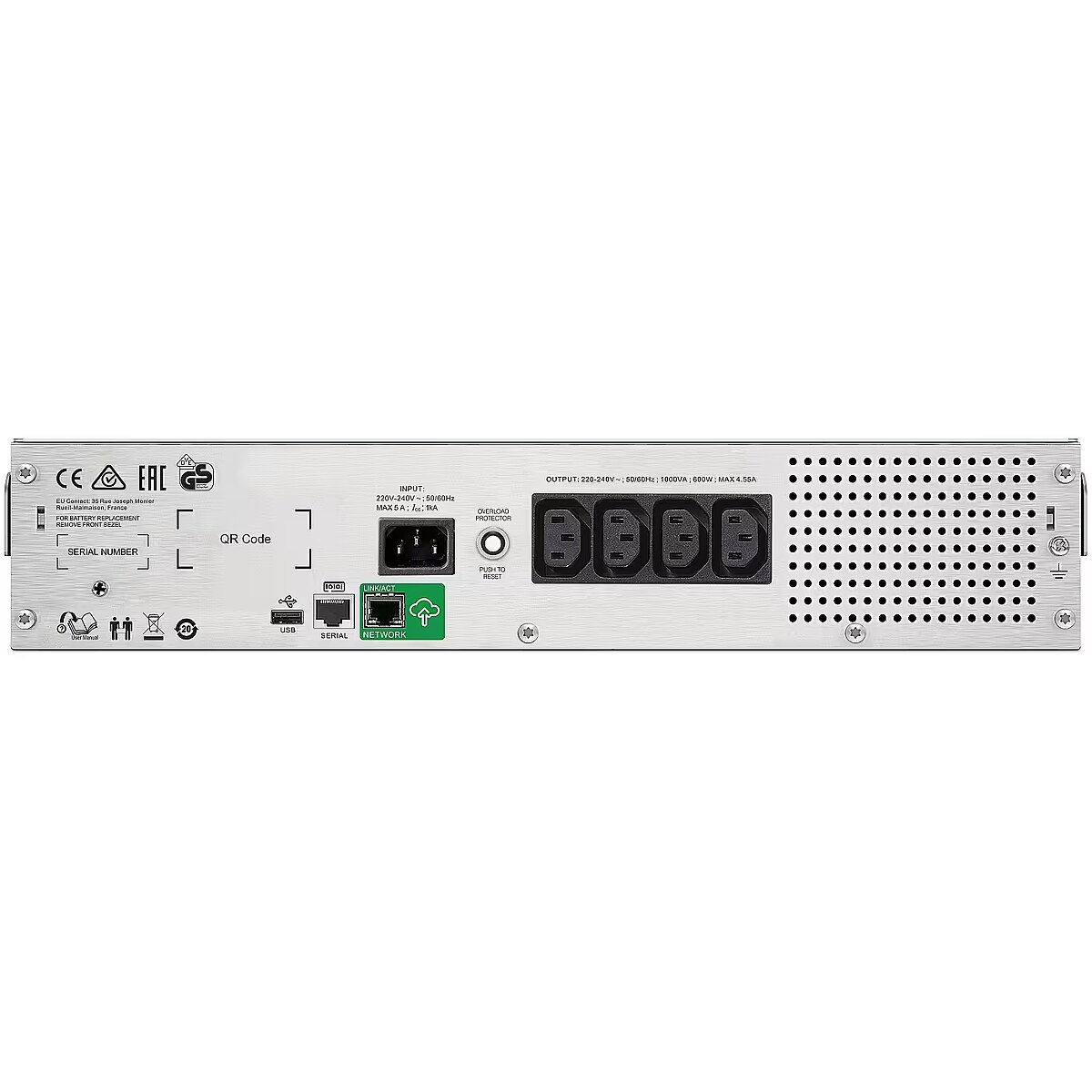

Output interface - 2 x IEC Jumpers (Battery Backup)
4 x IEC 320 C13 (Battery Backup)
Output power, W - 600
Output power capacity (VA) - 1000
Output power ports - 4 x IEC-C13
Packaging content - Cables included - RJ-45, RS-232
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 570 mm
Packaging data - Package height - 235 mm
Packaging data - Package weight - 20.7 kg
Packaging data - Package width - 535 mm
Packaging data - Resource CD - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
producer - APC
Producer - APC
ProducerCode - SMC1000I-2UC
ProductName - Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD
Rack height (units) - 2
ShortDescription -
Short description - APC Smart-UPS C 1000 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD, Line-Interactive, 1 kVA, 600 W, Sine, 170 V, 300 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 459
Sustainability - Sustainability certificates - ENERGY STAR, Green Premium
Title - APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
vendpn - SMC1000I-2UC
WarrantyInfo - 2 years
Weight - 20.52 kg
Weight - 21.96
Weight - 22.000000
Weight - 24,60
Weight & dimensions - Depth - 406 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 20.5 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 20.52
Width - 580.000000
Width, mm - 432
