Accessories included -
Active power - 600 W
Alarm - -
Apparent power - 850 VA
Backup time (100% load) - 4 min
BatteryType - -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Chassis type - Rack
Color - -
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)
ControlPanel - -
Depth - 509 mm

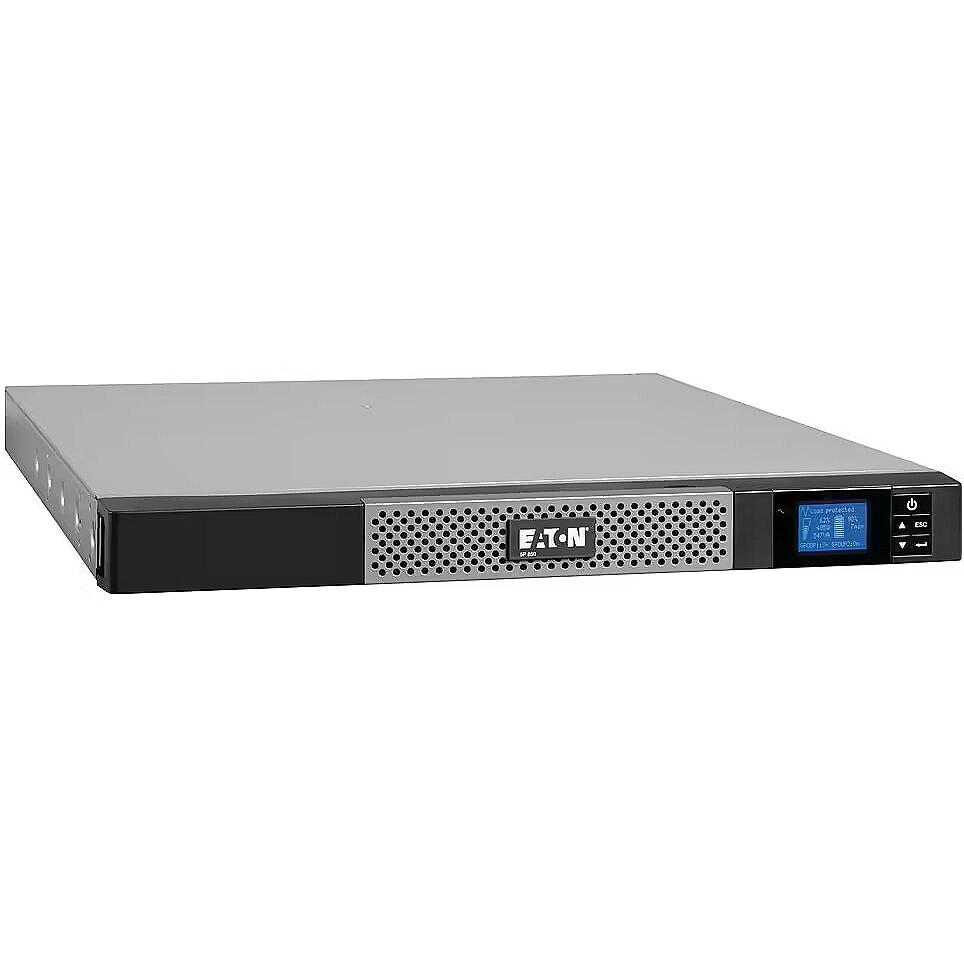

Description - Eaton 5P 850i Rack1U
Description - Eaton 5P 850i VA - Rack 1U version
New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.
Link to the specifications: http://powerquality.eaton.com/5P850iR.aspx?CX=65
dimension depth - 600 mm
dimension height - 550 mm
Dimensions - - Height: 43.2 mm
- Width: 438mm
- Depth: 509 mm
Dimensions - 43.2 x 438 x 509mm
dimension weight - 18200 g
dimension width - 170 mm
ean - 743172042910
Eans - 743172042910
Environment requirements - - Operating Temperature: 0 to 35 degrees C
- Noise level:
Filters / protection - Overdischarge
FormFactor - Rack
Full Description Line - 600 Watts|850 VA|Wave form type Sinewave|Topology LineInteractive|Input ports Single, IEC320 C14 (10AMP)|Output power connector type IEC 320 C13|1xRS232|1xUSB|Rack 1U
GrossWeight - 15.000 kg
guarantee - 36
guarantee_type - external
Height - 43.2 mm
InputConnections - 1 IEC C14 (10A)
InputFrequency - -
Input ports - Single, IEC320 C14 (10AMP)
Input power ports - IEC-C14
InputVoltage - -
InterfacePorts - -
LongDesc - The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
MANUFDATASHEET - http://powerquality.eaton.com/Products-services/Backup-Power-UPS/5P.aspx?cx=148
Name - Eaton 5P850iR
name - UPS 5P 850 Rack 1U 5P850iR; 850VA/ 600W; RS232
Number of phases input - 1 (230V)
Other features - - Input voltage without the use of batteries: 160-294V, 47-70Hz
- Output voltage: 200/208/220/230 / 240V, 50 / 60Hz
- Two groups of outlets 2 x IEC C13 (10A) remote-controlled
- Automatic battery test
- 1 card slot Communication Network-MS, ModBus-MS, MS-Relay
- 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off

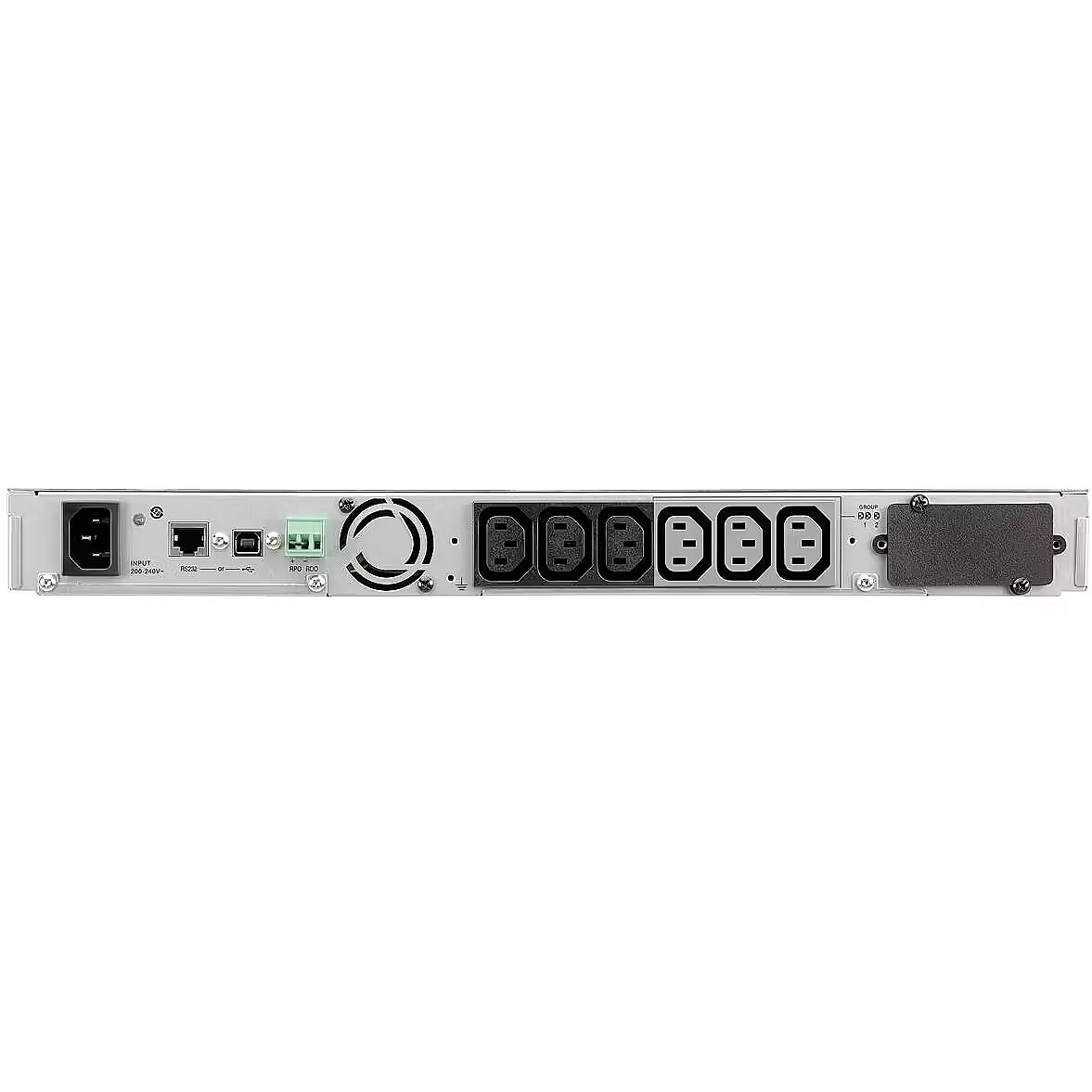

OutputConnections - 4 IEC C13 (10A)
OutputFrequency - -
Output power capacity, VA - 850 VA
Output power capacity, W - 600 Watts
Output power connector type - IEC 320 C13
Output power ports - 4 x IEC-C13
OutputVoltage - -
PackageContents - -
PowerVAW - 850 VA
PowerW - 600 W
ProdDesc - Eaton 5P 850VA/600W line-interactive UPS, 4 min@full load, rackmount 1U
producer - Eaton
Producer - Eaton
ProducerCode - 5P850iR
ProductPicture - http://www.tdbaltic.ee/images/ds4/5P850iR-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/5P850iR-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/5P850iR-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/5P850iR-04.jpg
Rack 1U Mounting Type - Yes
RechargeTime - -
RJ45 - -
RS232 Communication ports - 1
Runtime - 12/4
Shipping Box Depth Shipping/Package Box Dimensions - 59 cm
Shipping Box Height Shipping/Package Box Dimensions - 55 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 18.15 kg
Shipping Box Width Shipping/Package Box Dimensions - 17 cm
ShortDescription -
SmartSlot - -
Software -
Special functions - - Graphic LCD display (7 languages)
- Energy efficiency up to 98%
- Energy measurement
- Discontinuous charging
- Switchable group of outlets
- Sinusoidal waveform output
- Multiple communication options (compatible with virtual environments)
- Warranty 3 years electronics, 2 years on batteries
Topology - LineInteractive
Topology - Line interactive
Unit Box Height - 0.55
Unit Box Length - 0.59
Unit Box Width - 0.17
Unit Brutto Volume - 0.05516 cubm
Unit Gross Weight - 18.1 kg
Unit Net Weight - 13.8 kg
UPS Architecture - line-interactive
USB - -
USB Communication ports - 1
Vendor Homepage - powerquality.eaton.com/5P850iR.aspx?CX=13
vendpn - 5P850iR
Video -
Warranty - 3 years
Warranty - 24 months
WaveformType - -
Wave form type - Sinewave
Weight - 13.8 kg
Weight - 13.800 Kg
Width - 438 mm
