Accessories included - - 1 x kabel zasilający - 2,44 m,
- 1 x kabel szeregowy - zewnętrzna,
- 1 x kabel USB - zewnętrzne,
- Zestaw do montażu w stojaku.
Active power - 2700 W
Alarm - Audible and visible alarms prioritized by severity
Apparent power - 3000 VA
ARTIKEL1 - SMART UPS SRT
ARTIKEL2 - 3000VA RM 230V IN
Backup time (100% load) - 4 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 505 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Battery recharge time, h - 3
Battery technology - Lead-Acid
BatteryType -
Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof
Battery voltage, V - 96
Brand - APC
BrandPartCode - SRT3000RMXLI
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB 2.0
Connectors - SmartSlot
ControlPanel - Multi-function LCD status and control console
Depth - 635 mm
Depth, mm - 635
Description - APC Smart-UPS SRT 3000 VA do montażu w szafie, 230 V
Description - APC SMART-UPS SRT 3000VA RM 230V
Design - Cable length - 2.44 m
Design - Certification - CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 85 mm
dimension height - 635 mm
Dimensions - 43.2 cm x 63.5 cm x 8.5 cm (szerokość x głębokość x wysokość)
dimension weight - 40000 g
dimension width - 432 mm
ean - 731304317647
EAN - 0731304317647
EANCode - 0731304317647
Environment requirements - - Minimalna temperatura pracy 0 ° C,
- Maks. Temperatura pracy 40 ° C,
- Wilgotnosc 0 - 95% (bez kondensacji).
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Crest factor - 3:1
Features - Efficiency - 92%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Power protection features - Overload
Features - Surge energy rating - 340 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 50/60 +/- 3
Gewicht - 39
GrossWeight - 46.000 kg
Gross Weight Kg - 39,92
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304317647
GTIN - 0731304317647
guarantee - 36
guarantee_type - external
Height - 85 mm
Height - 250.000000
Height, mm - 85
HERSTELLER - APC
Hold-up time (maks) - 0 s
HSTNUMMER - SRT3000RMXLI
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
InputConnections - British BS1363AIEC-320 C20Schuko CEE 7/EU1-16P
InputFrequency - 40 - 70 Hz (auto sensing)
Input power ports - IEC-C20
InputVoltage - 230 V
InterfacePorts - RJ-45 Serial , Smart-Slot , USB
Length - 870.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc -
LongDesc - Always stay online and prevent data lossAn APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SRT3000RMXLI can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible.AvailabilityThe Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.SafetyIn addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Ease of useThe APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Extend the lifespanThe internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SRT3000RMXLI is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You also cannot eliminate critical loads; This way you extend the runtime for critical equipment.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)Included in the box1x SRT3000RMXLI1x USB cable1x C13 to C14 power cord 1.2M1x Software CD with Powershute Business Edition1x Documentation CD1x Schuko to C19 input power cord 2M1x British BS1363A to C19 input power cord1x C19 to C20 input power cord 2.5M2x Rack mounting brackets
LongProductName - APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount
LongSummaryDescription - APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 635 mm, Height: 85 mm
Manufacturer - APC
Manufacturer Code - SRT3000RMXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT3000RMXLI
MANUFDATASHEET - http://www.apc.com/shop/ee/en/products/APC-Smart-UPS-SRT-3000VA-RM-230V/P-SRT3000RMXLI
Maximum output power capacity (VA) - 3000
Maximum power, W - 2700
MPN - SRT3000RMXLI
Name - APC Smart-UPS Online Rack 3HE SRT3000RMXLI 2700W 3000VA
name - SRT3000RMXLI Smart-UPS S RT3000VA/2700W 230V Rack
No. of batteries - 1
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V

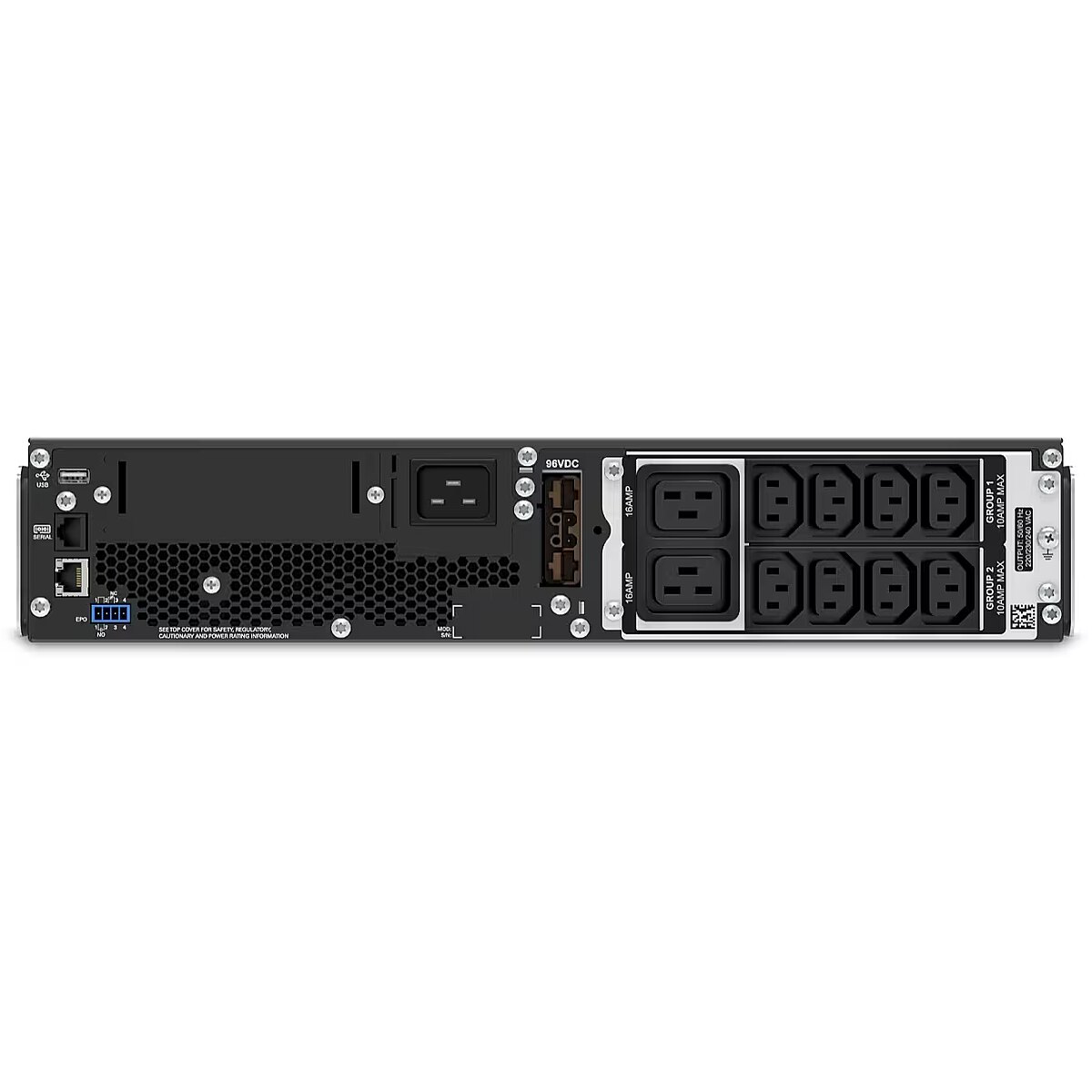

OutputConnections - (2) IEC 320 C19 (Battery Backup)(8) IEC 320 C13 (Battery Backup)
OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 2 x IEC 320 C19, 8 x IEC 320 C13
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 240 V
PackageContents - CD with softwareDocumentation CDInstallation guideRack Mounting bracketsRack Mounting support railsUSB cableWarranty card
Packaging data - Quick installation guide - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 3000 VA
PowerW - 2700 W
ProdDesc - Smart-UPS SRT 3000VA/2700W RM 230V online, 4 min@full load
producer - APC
ProductName - APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount
ProductPicture - http://www.tdbaltic.ee/images/ds4/SRT3000RMXLI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SRT3000RMXLI-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/SRT3000RMXLI-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/SRT3000RMXLI-04.jpg
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - 4 min (full load) / 12 min (half load)
Runtime - 11.8/4
Short description - APC Smart-UPS SRT 3000 VA RM SRT3000RMXLI
ShortSummaryDescription - APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount, Double-conversion (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 340
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount
Topology - Online
Transfer time (max) - 0 s
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/au/en/products/APC-Smart-UPS-SRT-3000VA-RM-230V-Network-Card/P-SRT3000RMXLI-NC
USB - Yes
vendpn - SRT3000RMXLI
Voltage - 230 V
Warranty - 2 years
WarrantyInfo - Three years for electronics/two years for battery
WaveformType - Sine wave
Weight - 31.3 kg
Weight - 31.300 Kg
Weight - 39.12
Weight - 40.000000
Weight & dimensions - Depth - 635 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Package depth - 871 mm
Weight & dimensions - Package height - 246 mm
Weight & dimensions - Package weight - 39.3 kg
Weight & dimensions - Package width - 599 mm
Weight & dimensions - Weight - 31.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 31.30
Width - 432 mm
Width - 600.000000
Width, mm - 432
