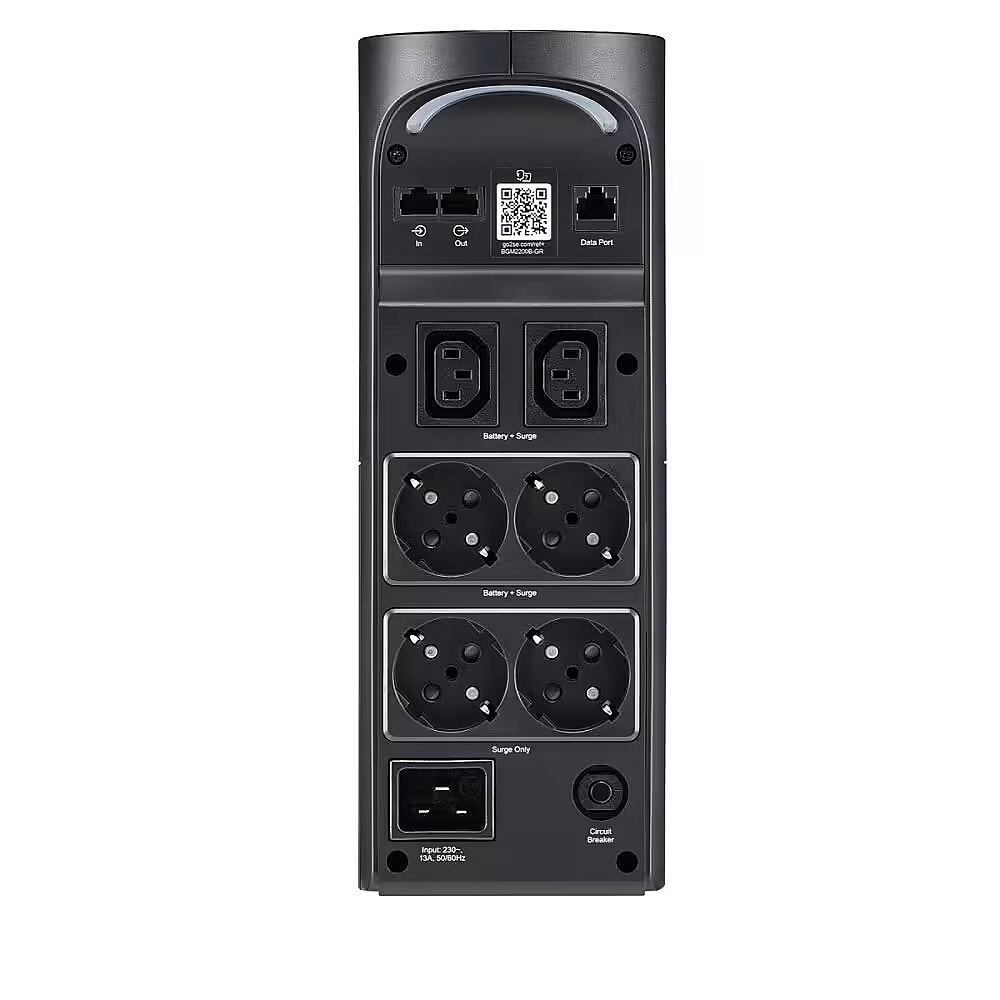

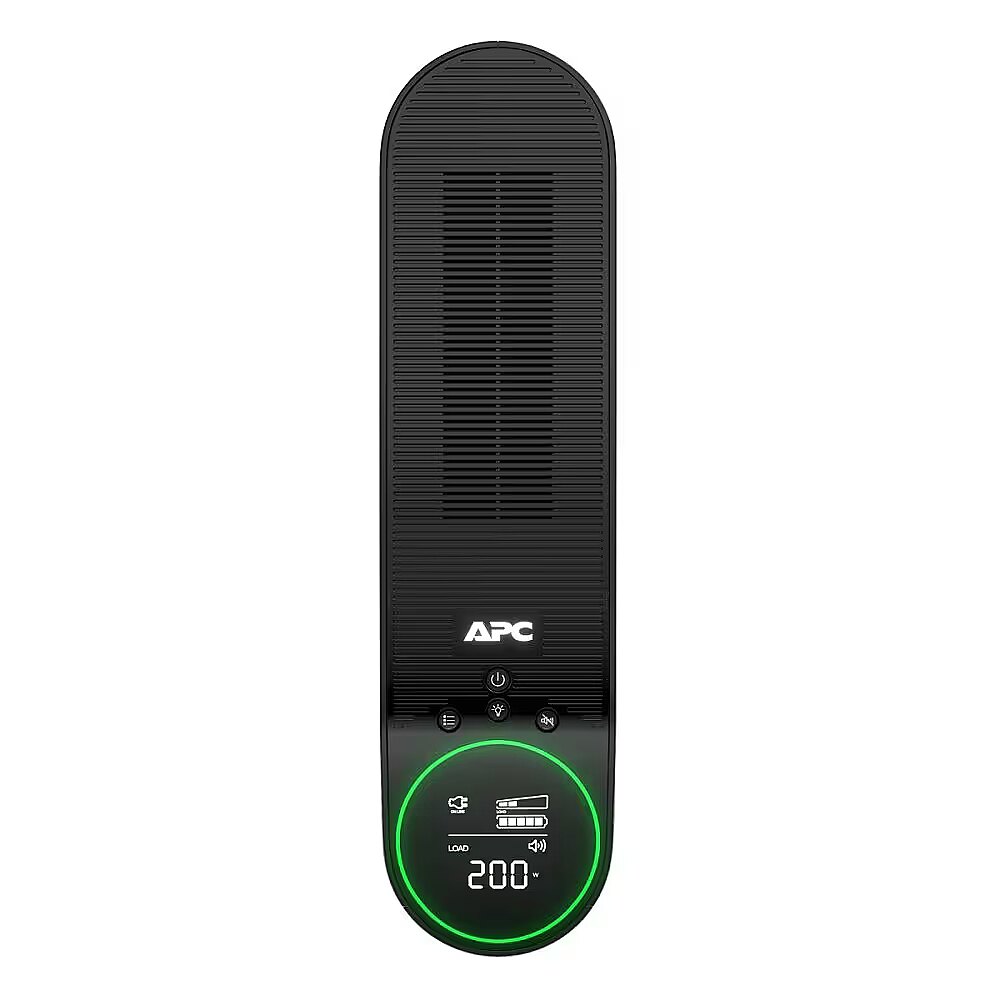

APC Back-UPS PRO BGM2200B-GR 2200VA, 1320W

Accessories included - Uninterruptible Power Supply Safety Manual USB Cable Power Cable
Active power - 1320 W
Apparent power - 2200 VA
ARTIKEL1 - BACK-UPS PRO 2200VA FOR GAMING
ARTIKEL2 - 230V PURE SINEWAVE LCD BLACK SCH
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 16 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 24 V
Battery - Cold start - Yes
Battery - Number of batteries supported - 1
Brand - APC
BrandPartCode - BGM2200B-GR
Breite - 0
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 16 h
Chassis type - Tower
Color - Black
Description - APC Back-UPS Pro, 2200VA/1320W, Tower, 230V, 4x Schuko and 2x IEC C13 outlets, RGB Lights, Pure Sine Wave, Midnight (Black) Pure sine wave output provides the cleanest signal for active PFC servers and electronics. AVR corrects voltage fluctuations to provide reliable power Reactor wheel visually warns of surges, dips, power interruptions and building wiring failures Smart USB charging ports (type A + C) for connecting wireless gaming devices and mobile phones Rear LEDs illuminate the sockets so you can see exactly where you are plugging in your gaming equipment Environmental performance of the product This APC Back-UPS Pro power supply provides excellent power protection for high-performance gaming consoles and PCs, routers/modems and gaming accessories. The 2200 VA/1320 W tower UPS has a total of 6 outlets, of which 3 are for battery power and surge protection and 3 are for surge protection only. It features a surge resistance of 1080 joules. It has an automatic voltage regulation function that corrects voltage dips and surges to an appropriate level. It is equipped with PowerChute Serial Shutdown, an easy-to-use software for securely shutting down the system with power and energy management functions. This UPS comes with a 3-year warranty and a $150,000 connected equipment protection policy. It has USB ports (Type A + C) for smart charging of personal devices.
Design - Cable length - 1.52 m
Design - Certification - IEC 62040-1-1
IEC 62040-2
Design - Display type - LCD
Design - Form factor - Tower
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Design - Rack capacity - 0U
dimension depth - 355 mm
dimension height - 490 mm
Dimensions - 292,10 x 104,14 x 408,94 mm
dimension weight - 14000 g
dimension width - 170 mm
EAN - 731304634768
ean - 20731304634762
EANCode - 0731304634762
Eans - 731304634768
Environment requirements - Ambient temperature for device operation: 0 - 40 °C Relative humidity: 0 - 95 % Ambient temperature for storage: -15 - 40 °C Relative humidity (storage): 0 - 95 %
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 168 V
Features - Maximum current - 12 A
Features - Noise level - 45 dB
Features - Output frequency - 60 Hz
Features - Output operation voltage (max) - 230 V
Features - Output power - 1320 W
Features - Output power capacity - 2.2 kVA
Features - Response time - 8 ms
Features - Surge energy rating - 1080 J
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Surge
Gross Weight Kg - 14,52
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304634768
GTIN - 0731304634768
guarantee - 36
guarantee_type - external
HERSTELLER - APC
Hoehe - 0
Hold-up time (maks) - 8 ms
HSTNUMMER - BGM2200B-GR
I/O connectors - 1 x USB (Type C)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x RJ-45 LAN
Input power ports - IEC-C20
Laenge - 0
LongDesc - Stay connected, stay onlineSuffering from a power outage? The APC Back-UPS PRO BGM2200B-GR ensures that your PC, game console, NAS, workstation, but also your WIFI internet (router + modem) continues to function if the power goes out. Thanks to the built-in battery, it immediately supplies emergency power to the connected equipment without interruption. This way you can continue gaming for a while, save your game, avoid penalties or reassure your streamers. If the UPS battery is almost empty, this APC emergency power supply can also automatically shut down a PC, workstation or NAS in time via the USB output and the included PowerChute software. This prevents downtime, loss of your progress and data, as well as damage to your hardware.Thunderstorm? Game on!Stop gaming during a thunderstorm? The APC gaming UPS protects your valuable hardware against peak (surge Max 1080 Joules) and overvoltage (Overcurrent 15A) that can be caused by indirect lightning strikes. With these UPS you can protect both your power and network connections (1Gbit), so you can continue gaming with peace of mind, even during thunderstorms.The APC BGM2200B-GR is also equipped with three USB chargers (type A+C, 3A total) so that you can safely and easily charge your controllers, headset and smartphone.How long can the UPS supply emergency power?You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS PRO:- Equipment protection policy of 150,000 euros (www.apc.com/nl/en/tools/epp/)UPS battery broken?The internal battery cartridge (APCRBC216) can be replaced easily, safely and independently by the user. This without having to switch off the APC BGM2200B-GR or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS and the connected equipment remains online.How can I extend the manufacturer's warranty?The factory warranty of the BGM2200B-GR is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).Save on operational costsThe BGM2200B-GR features an adjustable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 sockets: 3x backup power & over- and peak voltage protection, 3x over- and peak voltage protection. PowerChute Serial Shutdown software and a USB cable are also included.Gaming UPS Features-Reactor circleThanks to the receding Reactor Circle, equipped with 12 customizable RGB LEDs, the APC emergency power supply informs you at a glance about the remaining runtime and connected load.-160 degreesThe reactor circle screen is angled at 160 degrees, so it is visible from almost any angle.- Functional lightingWhen the Gaming UPS detects a power outage, such as power spikes, dips and even wiring errors, it will notify you with pulsating lights.-12 customizable RGB LEDsMatch with the atmosphere of your gaming platform.-USB chargerEasily accessible USB ports on the front to charge your wireless controllers, headset and smartphone, among other things.-RGB LED on the backThe APC Gaming UPS is equipped with LEDs on the back that illuminate the sockets, so you can see exactly where you connect your gaming equipment. The rear LED colors in sync with the reactor circle and provides an atmospheric glow behind your gaming setup.-Automatic Voltage Regulation (AVR)Maintains safe voltage conditions without using backup battery power, saving backup time for outages when you need them.-1Gb Network Dataline Surge ProtectionNetwork surge protection for telephone, Ethernet and coaxial cable connections. The UPS protects your equipment from "backdoor" surges traveling through data lines without sacrificing internet speed.-Hot-swappable and user-replaceable batteryYou can change the UPS battery yourself easily and quickly without turning off the UPS or switching off the equipment, keeping your equipment online and protected at all times.-The battery only needs 90 minutes to fully charge.-3 year warrantyThis UPS has a three-year manufacturer's warrantyWhat's in the box?APC Back UPS Pro Gaming BGM2200B-GRUSB cableSafety guideManualInput power cord Schuko-C20 1.52MGreen PremiumThis label represents Schneider Electric's commitment to quality products run with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)
LongProductName - APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport
LongSummaryDescription - APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1320 W. AC outlet types: C13 coupler, Type F, Power plug: Type F, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 24 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Rack capacity: 0U. Width: 104.1 mm, Depth: 408.9 mm, Height: 292.1 mm
Manufacturer Code - BGM2200B-GR
Manufacturer Name - APC by Schneider Electric
Name - APC Back-UPS Pro for Gaming BGM2200B-GR
name - UPS BGM2200B-GR Back-UPS Pro, 2200VA/1320W, Tower, 230V, 4xSchuko and 2xIEC C13 outlets, RGB Lights, Pure Sine Wave, Midnight (Black)
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 3048 m
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features -
Output power ports - 2 x IEC-C13
Output power ports - 4 x C/F type (Schuko)
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, Type F
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Power plug - Type F
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - USB port - Yes
producer - APC
Producer - APC
ProducerCode - BGM2200B-GR
ProductName - APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport
ShortDescription -
Short description - APC Back-UPS Pro 2200 VA, Gaming, BGM2200B-GR
ShortSummaryDescription - APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport, Line-Interactive, 2.2 kVA, 1320 W, Sine, 168 V, 302 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Technical details - Sustainability certificates - Green Premium
The shape of the output voltage - Full sine wave
Title - APC Back-UPS Pro BGM2200B-GR - 2200VA/1320W, 4x Schuko & 2x C13 outlets, 3x USB charger, USB dataport
UPS Architecture - line-interactive
URL - https://www.apc.com/nl/en/product/BGM2200B-GR/apc-backups-pro-2200va-1320w-tower-230v-4x-schuko-and-2x-iec-c13-outlets-rgb-lights-pure-sine-wave-midnight-black/
vendpn - BGM2200B-GR
Voltage - 24 V
WarrantyInfo - 3-Year
Weight - 12.34 kg
Weight & dimensions - Depth - 408.9 mm
Weight & dimensions - Height - 292.1 mm
Weight & dimensions - Package depth - 480 mm
Weight & dimensions - Package height - 155 mm
Weight & dimensions - Package weight - 14.5 kg
Weight & dimensions - Package width - 355 mm
Weight & dimensions - Weight - 12.3 kg
Weight & dimensions - Width - 104.1 mm
