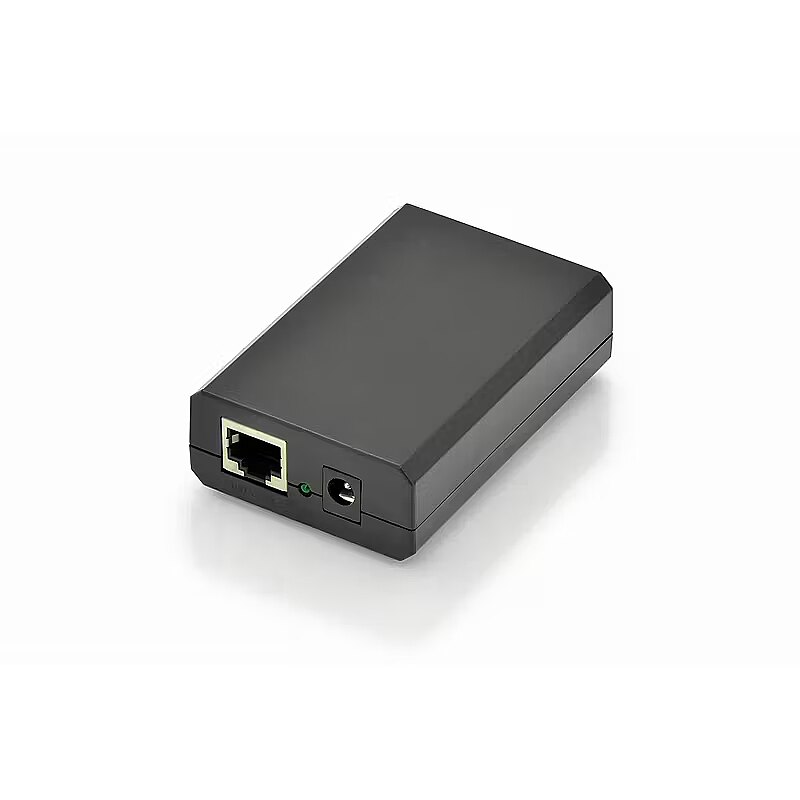

Digitus PoE Splitter

Accessories included -
ARTIKEL1 - GIGABIT POE AT SPLITTER 24W
ARTIKEL2 - IN:802.3ATOUT:5V/2A9V/2A12V/2A
Code - DN-95205
Color - Black
Description - The Splitter/PoE splitter is fully compliant with the IEEE 802.3at standard. It can work with all PSE (Power Source Equipment) devices or PoE power supplies operating in accordance with the IEEE 802.3at standard, supplying 12V or 5V DC voltage to places where there are no power outlets. It enables the installation of devices such as access points, IP cameras or IP telephones.
Design > Form factor - External
dimension depth - 25 mm
dimension height - 110 mm
Dimensions - 80 mm x 55 mm x 23 mm
dimension weight - 130 g
dimension width - 150 mm
EAN - 4016032423942
ean - 4016032423942
EANCode - 4016032423942
Features > Colour of product - Black
GRUPPE1 - Network
GRUPPE2 - Communication / Network Accs
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
HSTNUMMER - DN-95205
Inputs - 1 x Ethernet
Name - DIGITUS Gigabit Ethernet PoE+ Splitter, 802.3at, 24 W | Digitus | Black | PoE splitter
name - Splitter PoE + Injector 802.3at 24W Gigabit
Operational conditions > Operating temperature (T-T) - 0-40°C °C
Other features - - Ethernet speed: 10/100/1000 Mbps Gigabit Half/Full Duplex
- PoE standard: IEEE802.3at
- Plug and Play installation configuration is not required
- Output voltages to choose from: 5V/2A, 9V/2A, 12V/2A
- Distributes the 48V DC input voltage via an RJ45 Ethernet cable to different DC output voltages
- LED status LED on the device (PoE Ready/PoE working)
- Overvoltage and short circuit protection
- Maximum output power up to 24W
- Supports the input voltage range from 34V DC to 57V DC
- Thermal shutdown in case of overheating
- Working temperature: 0 to 40°C
Other features > Dimensions (WxDxH) - 8 cm x 5.5 cm x 2.3 cm mm
Other features > Output power - 5 / 9 / 12 V
Outputs - 1 x Ethernet
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 153.00 mm
Package features > Gross height (mm) - 25.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 5647 pc(s)
Package features > Paper/Pasteboard - 15.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content > Cables included - Network cable - external ¦ Power cable - external
Performance > Input voltage - DC 34 - 57 V V
Ports & interfaces > Interface - 1 x Gigabit LAN - RJ-45
Ports & interfaces > Output connections - 1 x power DC jack
Power > Power - 24 W
Power > Power supply - 24 W
producer - Digitus
Special functions -
Stck_Kart - 9998
Stck_Pal - 9998
Storno - Y
Technical details > Gross weight - 0.13 kg
Technical details > Net weight - 0.12 kg
Technical details > Producer - Digitus
Technical details > Type - PoE splitter
vendpn - DN-95205
Warranty - 24
Warranty - 24 month(s)
Weight - 80 g
Weight & dimensions > Weight - 80g g
