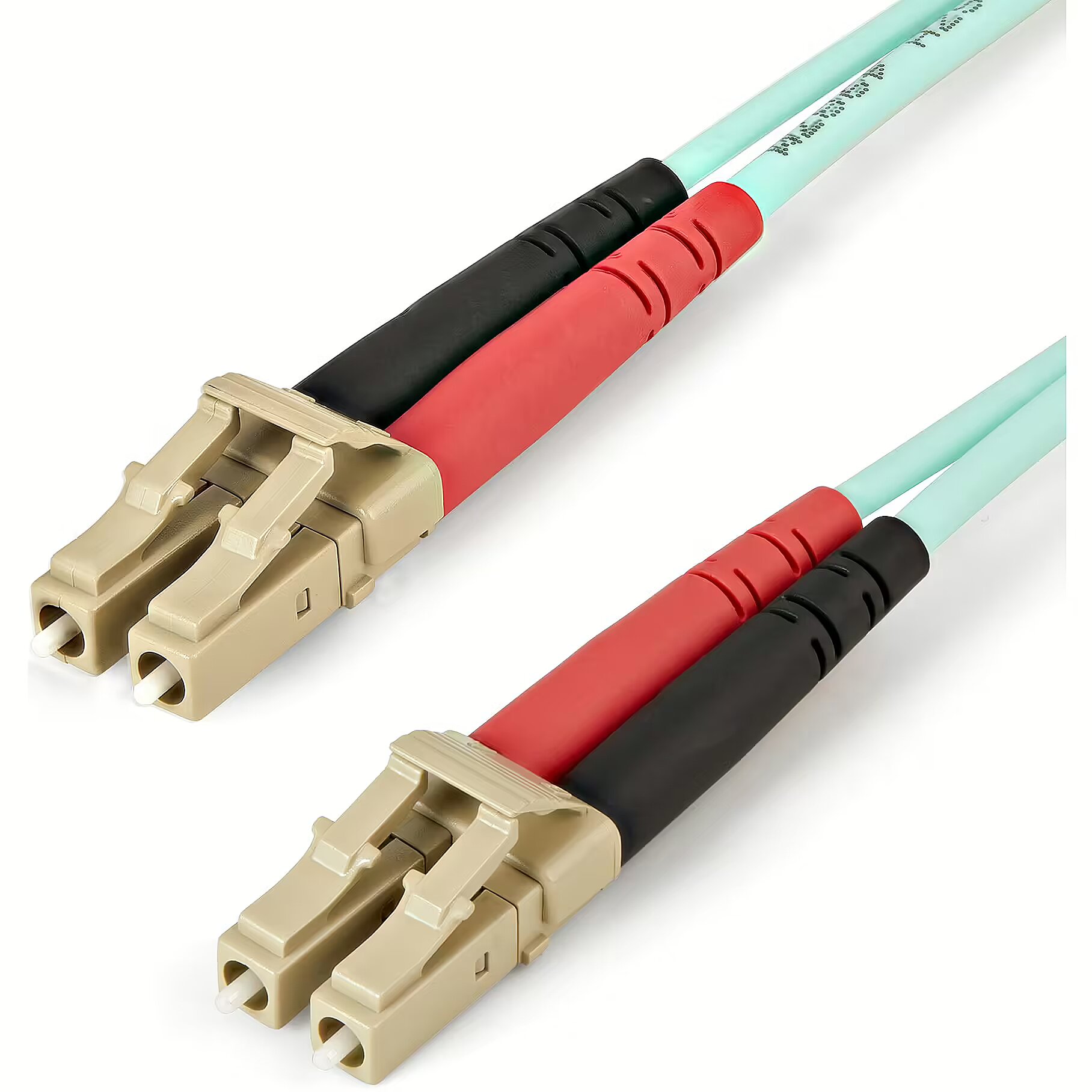

Startech Optical Patch Cable, LC/UPC, OM4, 5m

ARTIKEL1 - FIBER CABLE LC/LC 5M
ARTIKEL2 - OM4 50/125 MULTIMODE
Brand - StarTech.com
BrandPartCode - 450FBLCLC5
Category - InfiniBand & Fibre Optic Cables
EANCode - 0065030870849
Features - Cable length - 5 m
Features - Cladding diameter - 125 µm
Features - Connector 1 - LC
Features - Connector 1 gender - Male
Features - Connector 2 - LC
Features - Connector 2 gender - Male
Features - Core diameter - 50 µm
Features - Data transfer rate - 100 Gbit/s
Features - Fiber mode structure - Multi-mode
Features - Fibre optic type - OM4
Features - Full duplex - Yes
Features - Jacket material - Low smoke zero halogen (LSZH)
Features - Product colour - Aqua colour
Features - Wavelengths supported - 850 nm
GRUPPE1 - Cables
GRUPPE2 - Fiber Optic Cable
GTIN - 0065030870849
GTIN - 065030870849
HERSTELLER - STARTECH
HSTNUMMER - 450FBLCLC5
Logistics data - Harmonized System (HS) code - 85447000
LongDesc - LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.Engineered for Optimal PerformanceWith laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.Wide CompatibilityThis multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.Flame ResistantHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.The StarTech.com Advantage
LongProductName - StarTech.com 5m (16.4ft) LC/UPC OM4 Multimode Fiber Optic Cable, 50/125, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
LongSummaryDescription - StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord. Cable length: 5 m, Fibre optic type: OM4, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging data - Package depth - 220 mm
Packaging data - Package height - 19 mm
Packaging data - Package weight - 84 g
Packaging data - Package width - 200 mm
ProductName - 5m (16.4ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord
ShortSummaryDescription - StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord, 5 m, OM4, LC, LC
Stck_Kart - 9998
Stck_Pal - 90
Storno - Y
Technical details - Compliance certificates - CE, RoHS
Technical details - Doesn't contain - Halogen
Technical details - Sustainability compliance - Yes
Title - StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord
URL - https://www.startech.com/Cables/Network/Fiber-Optic/aqua-om4-fiber-optic-cable-lc-5m~450FBLCLC5
WarrantyInfo - Lifetime
Weight & dimensions - Weight - 74 g
