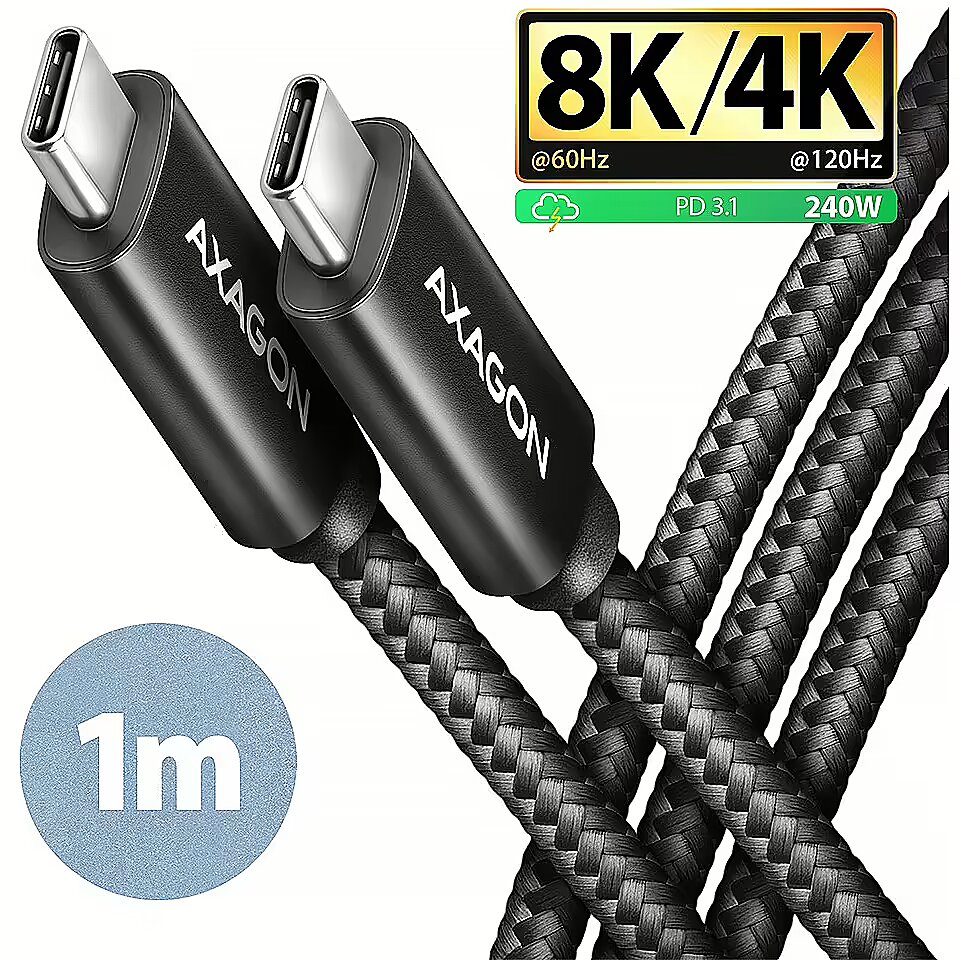

Axagon USB-C Cable, 240w, 1m

Accessories included - USB-C M USB-C M black cable, tightening strip, packed in sealed foil package with hanging hole.
Box Weight Brutto (kg) - 0.55 kg
Brand - Axagon
BrandPartCode - BUCM4X-CM10AB
Cable Features - Braided
Cable Functionality - USB-C Cable
Cable Length - 1 m
Cable length - 1 m
category - PC Components|Cables & Adapters|External Cables|USB|Connection Cables
Category - USB Cables
code - BUCM4X-CM10AB
Color - Black
Connectors #1 - USB Type C Male
Connectors #2 - USB Type C Male
Description - Premium connection USB-C USB-C Data and Charging AXAGON BUCM4X-CM10AB NewGen+ cable with USB-C male connectors at both ends. The cable has a full-featured USB 40Gbps specification (USB4 Gen 3x2) connection and is fully compatible with Thunderbolt 3 and Thunderbolt 4 specifications. It is designed for the fastest data transfer, video transfer and charging of laptops, phones, tablets. Allows connection of monitors, docking stations and external SSDs. The cable supports up to 40 Gb/s data transfer and also allows image transfer up to 8K/60Hz Full Ultra HD resolution and audio.  The cable has implemented the latest specification of Power Delivery 3.1 charging technology. This technology delivers, among other things, a power output of 240W which is more than double that of Power delivery 3.0, which delivers 100W. You can use not only the Standard Power Range (SPR) for voltages of 5, 9, 15 and 20V with a current of 5A, but also sufficient power in fixed voltages of 28, 36 and 48V with a maximum current of 5A (Extended Power Range - EPR). Thanks to the new PD 3.1 technology, you can also use the cable to power devices with much more power, such as gaming laptops, 8K monitors, docking stations. To identify the cable and its current capabilities, the cable has an integrated E-Mark chip.  The cable is also compatible with Quick Charge, PPS, Samsung AFC and SFC, Apple, SMART and other charging technologies. Cable conductors are made of Tin-plated oxygen free copper. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) and 32AWG data wires guarantee fast charging and reliable data transfer of connected devices. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference.  The cable is equipped with aluminum end caps, connectors with nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends. The bonus is the included practical strip for easy packing of the cable. Connectors:
2x USB-C (M) male.  Data and video transfer, charging:
40 Gb/s, 8K/60Hz HDR10
Power Delivery 3.1 - 240W (48V/5A) Other features:
DATA SYNC & FAST CHARGING - simultaneous data and video transfer and mobile device charging.
Support for third generation transfer rates of 40 Gb/s.
USB4 Gen 3x2 Full-featured.
Compatible with Thunderbolt 4, Thunderbolt 3 (including Apple support).
Support for second generation transmission rates 20 / 10 Gb/s.
Compatible with USB4 Gen 2x2, USB 3.2 Gen 2x2 / USB 3.2 Gen 2.
Supports transfer rates of 5.000 / 480 Mb/s.
Compatible with USB 3.2 Gen 1 (before USB 3.1 Gen 1 / USB 3.0) / USB 2.0.
DisplayPort 1.4a, 2.0 protocol support for audio and video transmission up to Full Ultra HD 8K@60Hz, HDR10 resolution - a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3/4 port is required.
Supported charging technologies: Power Delivery 2.0 / 3.0 / 3.1 240W (48V/5A), Qualcomm Quick Charge 2.0 / 3.0 / 4+, Samsung Adaptive Fast Charging, Huawei Fast Charge Protocol, SMART Charging and others.
Support for fast charging with a current of up to 5A.
Integrated E-MARK chip.
Cable includes power wires 22AWG, data wires 32AWG.
Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.
Double shielding via galvanized foil and tinned copper braiding minimizes interference and prevents signal loss.
Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection.
Suitable for MacBooks, iPhone 15 Pro / Pro Max, notebooks, mobile phones and smartphones, tablets, power banks, chargers, monitors, docking stations, external SSD drives and other mobile devices with a USB-C connector. Other data:
cable length 1 m,
outer diameter of the cable 5 mm. Package contains:
USB-C M USB-C M black cable,
tightening strip,
packed in sealed foil package with hanging hole.
dimension depth - 10 mm
dimension height - 200 mm
Dimensions -
dimension weight - 60 g
dimension width - 140 mm
ean - 8595247907967
EAN Code - 8595247907417
External Color - Melna
Features - Cable type - Round cable
Features - Connector 1 - USB C
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - USB C
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Male
Features - High Dynamic Range (HDR) supported - Yes
Features - High Dynamic Range (HDR) technology - High Dynamic Range 10 (HDR10)
Features - Maximum data transfer rate - 40 Gbit/s
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 7680 x 4320 pixels
Features - Plug and Play - Yes
Features - Product colour - Black
Features - USB Power Delivery - Yes
Features - USB Power Delivery revision - 3.1
Features - USB Power Delivery up to - 240 W
Features - USB Type-C DisplayPort Alternate Mode - Yes
Features - USB version - USB 3.2 Gen 2x2
GTIN - 8595247907967
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/231214130014574464.jpg
Left Connector - USB Type C (Male)
LongDesc - Premium connection USB-C USB-C Data and Charging AXAGON BUCM4X-CM10AB NewGen+ cable with USB-C male connectors at both ends. The cable has a full-featured USB 40Gbps specification (USB4 Gen 3x2) connection and is fully compatible with Thunderbolt 3 and Thunderbolt 4 specifications. It is designed for the fastest data transfer, video transfer and charging of laptops, phones, tablets. Allows connection of monitors, docking stations and external SSDs.The cable supports up to 40 Gb/s data transfer and also allows image transfer up to 8K/60Hz Full Ultra HD resolution and audio. The cable has implemented the latest specification of Power Delivery 3.1 charging technology. This technology delivers, among other things, a power output of 240W which is more than double that of Power delivery 3.0, which delivers 100W. You can use not only the Standard Power Range (SPR) for voltages of 5, 9, 15 and 20V with a current of 5A, but also sufficient power in fixed voltages of 28, 36 and 48V with a maximum current of 5A (Extended Power Range - EPR). Thanks to the new PD 3.1 technology, you can also use the cable to power devices with much more power, such as gaming laptops, 8K monitors, docking stations. To identify the cable and its current capabilities, the cable has an integrated E-Mark chip. The cable is also compatible with Quick Charge, PPS, Samsung AFC and SFC, Apple, SMART and other charging technologies.Cable conductors are made of Tin-plated oxygen free copper. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) and 32AWG data wires guarantee fast charging and reliable data transfer of connected devices. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference. The cable is equipped with aluminum end caps, connectors with nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends.The bonus is the included practical strip for easy packing of the cable.Connectors:• 2x USB-C (M) male. Data and video transfer, charging:• 40 Gb/s, 8K/60Hz HDR10• Power Delivery 3.1 - 240W (48V/5A)Other features:• DATA SYNC & FAST CHARGING - simultaneous data and video transfer and mobile device charging.• Support for third generation transfer rates of 40 Gb/s.• USB4 Gen 3x2 Full-featured. • Compatible with Thunderbolt 4, Thunderbolt 3 (including Apple support). • Support for second generation transmission rates 20 / 10 Gb/s.• Compatible with USB4 Gen 2x2, USB 3.2 Gen 2x2 / USB 3.2 Gen 2. • Supports transfer rates of 5.000 / 480 Mb/s.• Compatible with USB 3.2 Gen 1 (before USB 3.1 Gen 1 / USB 3.0) / USB 2.0.• DisplayPort 1.4a, 2.0 protocol support for audio and video transmission up to Full Ultra HD 8K@60Hz, HDR10 resolution - a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3/4 port is required.• Supported charging technologies: Power Delivery 2.0 / 3.0 / 3.1 240W (48V/5A), Qualcomm Quick Charge 2.0 / 3.0 / 4+, Samsung Adaptive Fast Charging, Huawei Fast Charge Protocol, SMART Charging and others.• Support for fast charging with a current of up to 5A.• Integrated E-MARK chip.• Cable includes power wires 22AWG, data wires 32AWG. • Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.• Double shielding via galvanized foil and tinned copper braiding minimizes interference and prevents signal loss.• Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection.• Suitable for MacBooks, iPhone 15 Pro / Pro Max, notebooks, mobile phones and smartphones, tablets, power banks, chargers, monitors, docking stations, external SSD drives and other mobile devices with a USB-C connector.Other data: • cable length 1 m, • outer diameter of the cable 5 mm.Package contains:• USB-C M USB-C M black cable,• tightening strip,• packed in sealed foil package with hanging hole.
LongProductName - USB4 Gen 3x2, Type-C, 240W max, 1 m
LongSummaryDescription - Axagon BUCM4X-CM10AB. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2x2, Maximum data transfer rate: 40 Gbit/s, Product colour: Black
name - AXAGON BUCM4X-CM10AB USB-C zu USB-C Kabel, USB4 Gen 3×2, 1 m, PD 240W, 8K HD, ALU, geflochten - schwarz
name - BUCM4X-CM10AB cable USB -C USB-C USB4.0 240W
Other features -
Package Type - Retail
Packaging data - Package depth - 10 mm
Packaging data - Package height - 205 mm
Packaging data - Package type - Blister
Packaging data - Package weight - 60 g
Packaging data - Package width - 130 mm
Packs in Box - 10
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
Power - Output current (max) - 5 A
Power - Output voltage - 48 V
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=231211081855002985&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - BUCM4X-CM10AB
ProductDescription - AXAGON BUCM4X-CM10AB NewGEN+ cable USB-C USB-C, 1m, USB4 Gen 3×2,
ProductName - BUCM4X-CM10AB
ProductType - Adaptors
Retail Packaging Net Weight Carton - 0.005 kg
Retail Packaging Net Weight Plastic - 0.005 kg
Right Connector - USB Type C (Male)
ShortSummaryDescription - Axagon BUCM4X-CM10AB, 1 m, USB C, USB C, USB 3.2 Gen 2x2, 40 Gbit/s, Black
Standard - USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2
Standard - USB4 (4.0)
System Requirements -
Title - Axagon BUCM4X-CM10AB USB cable USB 3.2 Gen 2x2 1 m USB C Black
Type - Cable
URL - https://www.axagon.eu/en/produkty/bucm4x-cm10ab
Usage - Computer
Usage - For smartphone
Usage - Power cable
Usage - Video
Vendor - AXAGON
vendpn - BUCM4X-CM10AB
WarrantyInfo -
Warranty Products Returnable - Yes
Warranty Term (month) - 12 mēneši
Warranty validation Criteria - Serial Number
Weight - 60 g
Weight & dimensions - Cable length - 1 m
